R12 125cc ATV Semi-Auto 3 Speed With Reverse
R12 125cc ATV Semi-Auto 3 Speed With Reverse

Want Extra Savings?

Text: SAFER To 1-866-606-3991 For Extreme Steals & Deals!

Sign Up For VIP Steals & Deals...
LIST PRICE: $2,999.95
REGULAR PRICE: $2,299.95
DEC. 22nd 7 HR. SALE: $2,799.95
You save $700.00!


Availability:: Currently Unavailable
Product Code: R-12-125CC-ATV

Color

Choose Color:
Warranty

Choose Warranty Option*:
MSO / Title Processing


Shipping

Choose Shipping Method*:
Delivery Type

Business Delivery [Add $0.00]
Residential Delivery
Terms & Conditions

I Agree To Terms & Cond.
Description


R12 125cc ATV Semi-Auto

3 Speed With Reverse




CALL NOW (866) 606-3991

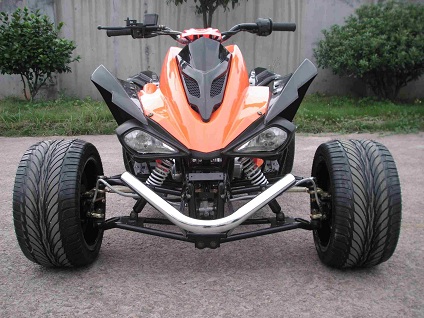

R-12 125cc FOUR WHEELER ATV
You will be extremely excited once you receive the R-12 125cc Quad ATV because it has what other R-12 125cc Quad ATV sellers on EBAY does NOT! Sure there are others out there claiming or selling models that look the same, however the quality is just not there! Every single ATV comes with a warranty that is fully backed leaving you with NO RISK involved!


CALL NOW (866) 606-3991
R-12 125cc FOUR WHEELER ATV



CALL NOW (866) 606-3991
R-12 125cc FOUR WHEELER ATV



CALL NOW (866) 606-3991
R-12 125cc FOUR WHEELER ATV



CALL NOW (866) 606-3991
R-12 125cc FOUR WHEELER ATV



CALL NOW (866) 606-3991
R-12 125cc FOUR WHEELER ATV



CALL NOW (866) 606-3991
R-12 125cc FOUR WHEELER ATV



CALL NOW (866) 606-3991
R-12 125cc FOUR WHEELER ATV



CALL NOW (866) 606-3991
R-12 125cc FOUR WHEELER ATV



CALL NOW (866) 606-3991
R-12 125cc FOUR WHEELER ATV



CALL NOW (866) 606-3991
R-12 125cc FOUR WHEELER ATV



CALL NOW (866) 606-3991
R-12 125cc FOUR WHEELER ATV



CALL NOW (866) 606-3991
R-12 125cc FOUR WHEELER ATV



CALL NOW (866) 606-3991
R-12 125cc FOUR WHEELER ATV



CALL NOW (866) 606-3991
R-12 125cc FOUR WHEELER ATV



CALL NOW (866) 606-3991
R-12 125cc FOUR WHEELER ATV



CALL NOW (866) 606-3991
R-12 125cc FOUR WHEELER ATV


CALL NOW (866) 606-3991
R-12 125cc QUAD ATV


CALL NOW (866) 606-3991
R-12 125cc FOUR WHEELER ATV



CALL NOW (866) 606-3991
R-12 125cc 4 WHEELER ATV



Features & Specifications:

  • Overall Length: 81"
  • (Y12)12 & Up
  • Overall Width: 47.2"
  • Overall Height: 35"
  • Seat Height: 25"
  • Max Non-Limited Speed: (65±5)Km/h
  • Ground Clearance: 3"
  • Wheelbase: 56"
  • Climbing Angle: 20 degrees
  • Max Steering Angle: 30 degrees
  • Wheels Air Pressure: 22Psi
  • Unladen Mass: 137Kg
  • Complete Vehicle Curb Mass: 141Kg
  • Passenger #: 1
  • Transmission Type: Chain
  • Brake: Front/rear:disc brake by hand/foot
  • Tire Size: 235/30-12
  • Fuel Tank: 4.1L
  • Gasoline Type: RQ90# or Higher
  • Battery Type: 12V6.5Ah
  • Lamps: Two front big lamps,one rear tail lamp
  • Engine Type: 152FMH,4-stroke,single Cylinder
  • Number Of Cylinders: 1
  • Cooling System: Air Cool
  • Spark Plug Valve: 0.6-0.7mm
  • Starting Type: Electric
  • Ignition Type: C.D.I
  • Carburetor Type: PZ20
  • Lubrication Type: Press/Splash
  • Clutch Type: Auto Wet-Multi
  • Lowest Fuel Consumption: ≤367g/kw.h
  • Lubricant Type: SF15W/40 or similar
  • Idle Speed: 1500±150 r/min
  • Bore x Stroke: 2×2"
  • Displacement: 123.6ml
  • Compression Rate: 9.3:1
  • Max Power: 6.1/7500(1±5%)KW/rpm
  • Max Torque: 8.0/6000((1±5%)N.m/rpm
